Direct answer: contact method changes the reading—standardise it

Different contact paths transmit vibration into the sensor with different stiffness, damping and consistency. A magnetic base, firm hand pressure and a stinger tip will not behave the same on the same surface. Industry guidance on sensor mounting stresses that several methods exist, each with pros and cons, so the technique must match your monitoring strategy and stay fixed for trend work. Commissioning-style checklists for vibration probes likewise treat installation steps as something to follow methodically rather than improvise on the day.

Before you chase a “high” or “low” value, confirm that the same contact method, orientation and surface condition were used. If the method changed, treat the reading as a new baseline, not a like-for-like comparison.

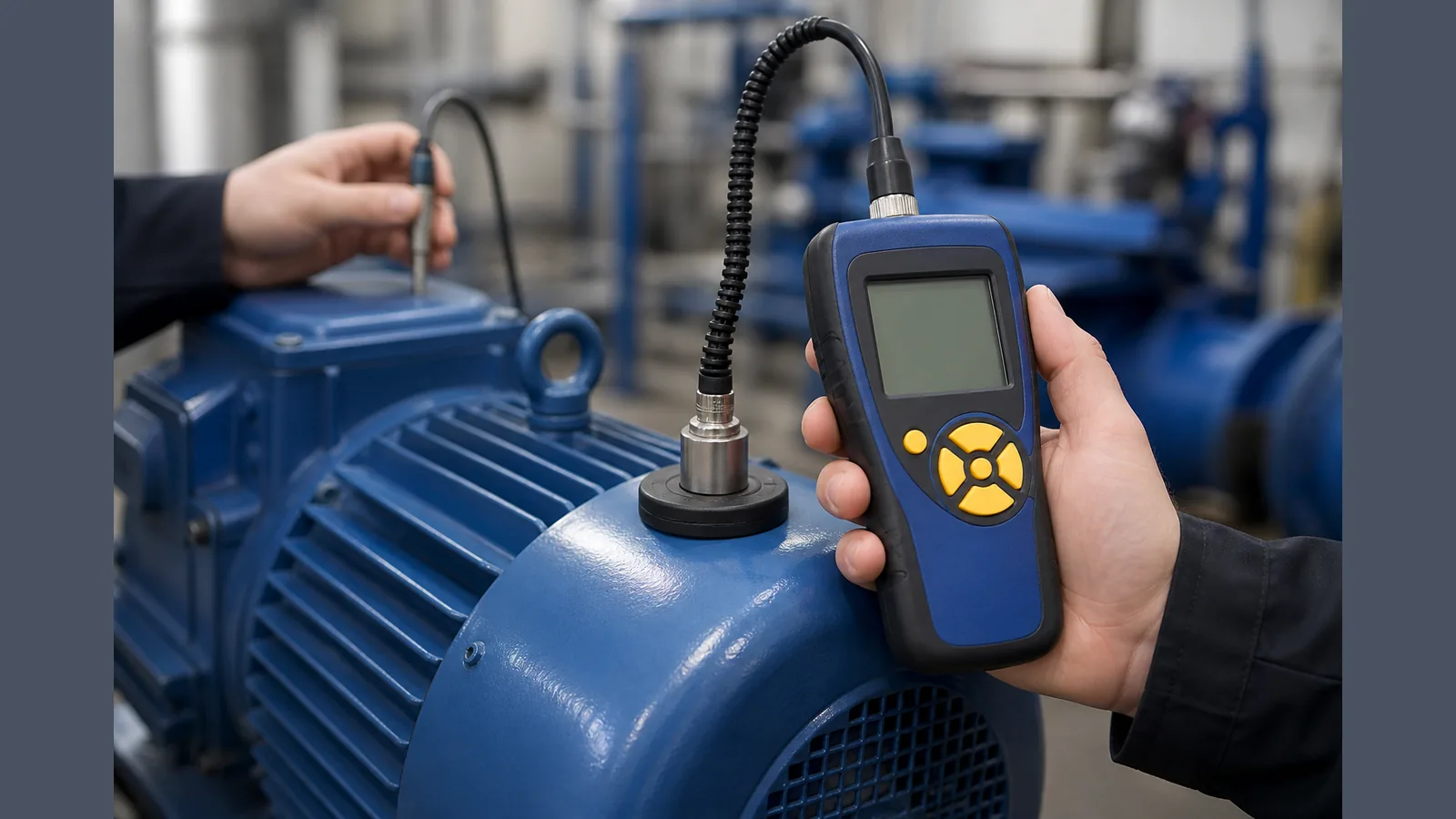

Magnetic base vs hand pressure vs stinger tip

A magnetic base is useful where a clean, ferromagnetic spot can take a stable seat and you need hands-free contact for a short hold. It reduces the temptation to rock the probe, but only if the pad sits flat and the magnet is fully engaged.

Hand-held tip contact depends on how firmly and squarely you press. Uneven pressure, finger tremor or a glancing angle introduce scatter even when the machine state has not changed. If your route uses hand pressure, define a simple pressure cue (for example, firm square contact until the tip does not rock) and train everyone to the same cue.

A stinger tip helps reach recessed or awkward spots, yet the longer, narrower path is more sensitive to angle and side load. Keep the tip in line with the intended axis, avoid levering against guards, and do not mix stinger points with magnetic or bare-hand points when you are building a trend.

Accurate sensor installation matters because poor mounting undermines monitoring efficiency; choose one primary method per route point and document it.

Bearing housing placement basics

Place the contact on a rigid point on the bearing housing or other solid machine metal that represents the vibration path you intend to watch. Prefer a clean, painted or bare metal face that is not loosely bolted covers, flexible guards or soft insulation.

Mark the spot so every visit lands on the same location. Note radial versus axial intent in the route sheet, and keep the probe axis consistent with that note. If access forces a compromise position, record the compromise rather than silently moving the point later.

Avoid soft covers and inconsistent angles

Soft covers, rubber mats, thick paint flakes, grease cakes and plastic shrouds absorb or distort contact. Scrape or wipe only what is safe and permitted; if you cannot reach solid metal, say so in the notes and do not pretend the reading matches a bare-housing point.

Inconsistent angles are a common source of false change. A tip that lands square on one visit and at a slant on the next will not track the same path into the housing. Use the same clock position and the same lean relative to the shaft centreline wherever the layout allows.

Safety access before placing a tip on plant

Confirm isolation, permits, guarding rules and hot-surface or rotating-hazard controls before any tip, magnet or hand approaches the machine. Do not reach through moving parts, remove interlocked guards without authority, or stand where a slip would put you into the drive line.

This article is about machine vibration contact for condition checks on items such as HVAC plant, motors, engines and generators. It is not guidance for hand-arm vibration (HAVS) exposure meters, which serve a different purpose.

If the only reachable surface is unsafe or unstable, stop and rearrange access rather than forcing a poor contact that you cannot repeat.

Checklist for repeatable route points

• Name the exact machine and measurement point in the route sheet.
• State the contact method: magnetic base, hand-held tip or stinger tip.
• Describe surface condition expected (clean rigid metal; no soft cover).
• Fix orientation (radial/axial) and a simple angle cue.
• Use the same hold time style each visit so the display can settle before you record.
• Note anything that changed: paint, brackets, guards, temperature or access.
• If the method had to change, start a new trend label instead of blending old and new values.

A step-by-step commissioning mindset—verify mounting, location and repeatability before trusting comparisons—keeps route data usable over time.
